Paper Machinery
Please find on these pages information about a number of items of equipment which we have available. We do have some items of equipment that the client does not want to place in a general advertisement and so it is always a useful idea to send me an enquiry using the contact page if there is a particular item of equipment that you are looking for.
More information is available for each item of equipment which is shown, and this can be seen by just clicking on the heading or the photograph of the equipment which is of interest. Once you pass through to the information about a specific item of equipment it is possible to download or print a document with information about a particular item of equipment.

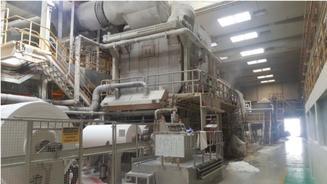

2300 mm Tissue Paper Machine with Crescent Former
- Grammage Range 13 to 40 gsm
- Design speed 1350 m/min
- Jumbo reel diameter 2000 mm
- Running until January 2019
- Winder included
- Boiler included

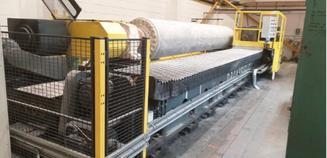

Dronsfield Roll Grinding Machine
- Maximum roll face width 7.5 metres
- Parrallel and cambered grinding
- Maximum roll diameter 1500 mm
- Minimum roll diameter 200 mm
- Maximum roll weight 50 tonnes
2500 mm Deckle Paper Machine
- Maximum operating speed 740m/min
- Grammage range 33-170 gsm
- On machine bill blade coater plus in line coater with 2 coating stations
- Could be converted to produce coated packaging grades

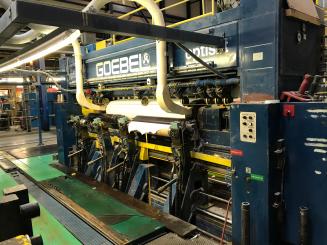

Goebel Optislit 2600 mm Winder
- Maximum operating speed:1600m/min
- Grammage range: 40-170 gsm
- Maximum unwind diameter: 2000 mm
- Maximum rewind diameter: 1500 mm
- 3 rewinds
- 10 top knives
Cameron 2650 mm Winders
- Maximum operating speed:1200m/min
- Grammage range: 40-170 gsm
- Maximum unwind diameter: 2000 mm
- Maximum rewind diameter: 1200 mm
- Minimum slit width: 110 mm
- 13 top knives
