Please find on these pages information about a number of items of equipment which we have available. We do have some items of equipment that the client does not want to place in a general advertisement and so it is always a useful idea to send me an enquiry using the contact page if there is a particular item of equipment that you are looking for.
More information is available for each item of equipment which is shown, and this can be seen by just clicking on the heading or the photograph of the equipment which is of interest. Once you pass through to the information about a specific item of equipment it is possible to download or print a document with information about a particular item of equipment.

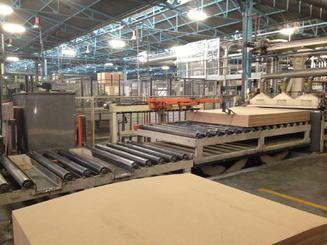

Complete Laminate Flooring Line
- Wemhoner 2200 mm x 3850mm Press
- 130 pressing per hour
- Homag Optimat FR20 edge profile (x2)
- Flooring board packing line
- Palletising unit for flooring packs

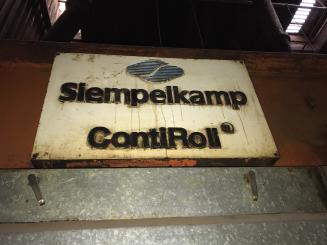

Siempelkamp ContiRoll continuous press line
Installed 1990 with 38 metre pressplate
Capacity of 1500 m3 per day of particle board.
Speed maximum 40 m/min (640 mm/s)
Thickness range 6 to 42 mm.
Board sizes at press exit
Width 1800 mm to 2070 mm
Length 4100 mm to 5600 mm
Equipment includes
PAL/IMAL blending equipment
TEXPAN forming stations.
Siempelkamp pre press
Siempelkamp ContiRoll press with Grecon blow detection system
Siempelkamp handling system diagonal saw.
Steinemann 4 head sander.
Electrical equipment 400V and 50Hz

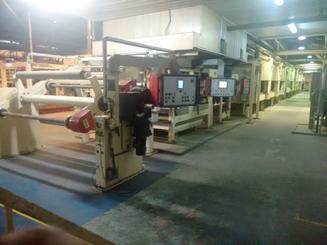

VITS Paper Impregnation Line
- Maximum paper width 1700 mm
- Maximum sheet length 4000 mm
- Operating speed 15-50 m/min
- Capable of running Phenolic or Melamine Resins
- Electrical controls rebuilt in 2010 by Tocchia
.jpg "Particle Board Screening and Milling Equipment SOLD")
Screening and hammer mills for 1300 m3 per day particleboard production line. Consisting of
- 4 screens
- 2 PAL airgraders
- 2 Pallmann PSKM-15 double stream mills
- 1 Pallmann 12-12 hammer mill

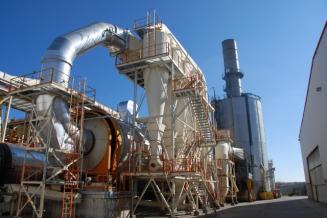

.jpg "Particle Board RECALOR Drying Equipment SOLD")
Drying line for 1300 m3 per day particle board line consists of
- Biomass boiler
- Dryer 1 with 14 Tonnes/hr water drying capacity
- Dryer 2 with 25 Tonnes/hr water drying capacity
- EWK WESP
